Customizable Tube Mill Lines Built For Precision, Reliability and Safety
At MTM, we specialize in providing complete, high-performance coil-to-tube systems for manufacturers worldwide. Backed with 50 years of engineering experience, we work closely with you to deliver machinery that precisely matches your requirements.
Built on decades of engineering excellence
Since 1962, MTM has been globally known among major tube manufacturers for innovation, quality and reliability. Our solutions are adaptable to the specific demands of every client. Backed by high-level automation, MTM’s tube mill lines power production with accurate welding, forming and sizing.
Beyond machines, we built long-term partnerships rooted in trust, tailored technical support and personal attention to every project.
Advanced solutions for your entire tube mill production line
MTM designs complete tube mill lines that evolve with your production needs. Our machines are engineered for long-term performance, reduced downtime and improved efficiency at every stage of production.
Strip entry lines
Tube forming mills
Cutoff machines
Packing systems
Complete tubemills characteristics by model
| MODEL | Material | Welding process |
OD min
|
OD max
|
WT min
|
WT max
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in | |||
| MTM 040 | CS/SS/AA | HF/T | 6 | 0.236 | 28 | 1.102 | 0.2 | 0.008 | 1.2 | 0.047 |
| MTM 050 | CS/SS/AA | HF/T/L | 10 | 0.394 | 38.1 | 1.5 | 0.5 | 0.02 | 2.5 | 0.098 |
| MTM 060 | CS/SS/AA | HF/T/L | 12.7 | 0.5 | 63.5 | 2.5 | 0.6 | 0.024 | 3 | 0.118 |
| MTM 070 | CS/SS/AA | HF/T/L | 15.8 | 0.625 | 76.2 | 3 | 0.7 | 0.028 | 4 | 0.157 |
| MTM 080 | CS/SS/AA | HF/T/L | 21 | 0.827 | 80 | 3.15 | 0.8 | 0.031 | 5 | 0.197 |
| MTM 090 | CS/SS/AA | HF/T/L | 25.4 | 1 | 88.9 | 3.5 | 1 | 0.039 | 5 | 0.197 |
| MTM 100 | CS/SS/AA | HF/T/L | 33 | 1.3 | 114.3 | 4.5 | 1.2 | 0.047 | 5.5 | 0.217 |
| MTM 120 | CS/SS/AA | HF/L | 38.1 | 1.5 | 127 | 5 | 1.5 | 0.059 | 6 | 0.236 |
| MTM 130 | CS/SS | HF/L | 63.5 | 2.5 | 168 | 6.615 | 1.5 | 0.059 | 7 | 0.276 |
| MTM 160 | CS/SS | HF/L | 88.9 | 3.5 | 219 | 8.625 | 2.5 | 0.098 | 8 | 0.315 |
| MTM 170 | CS/SS | HF/L | 114.3 | 4.5 | 254 | 10 | 3 | 0.118 | 10 | 0.394 |
- ODOuter Diameter
- WTWall Thickness

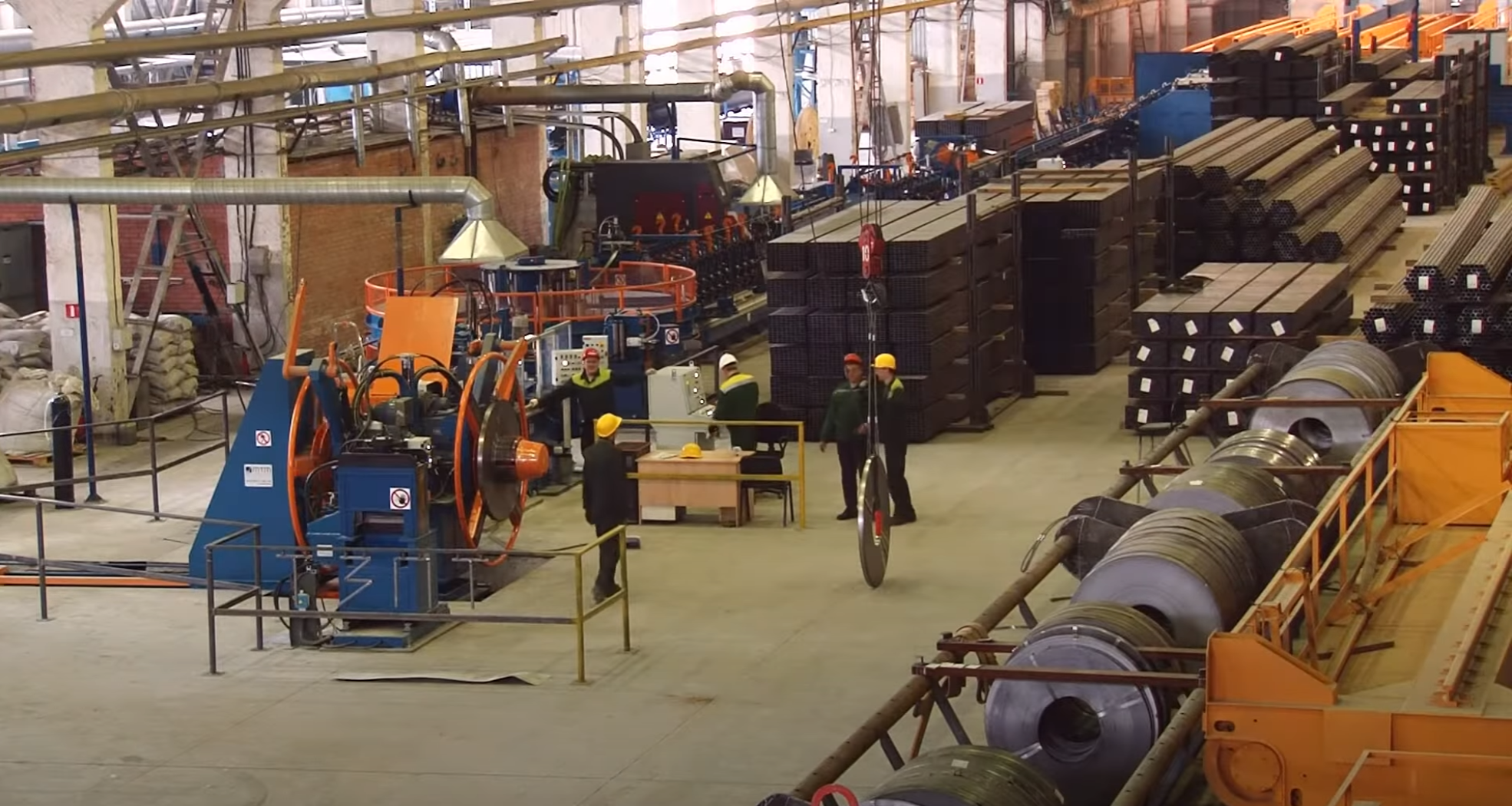

Watch our systems perform on the factory floor

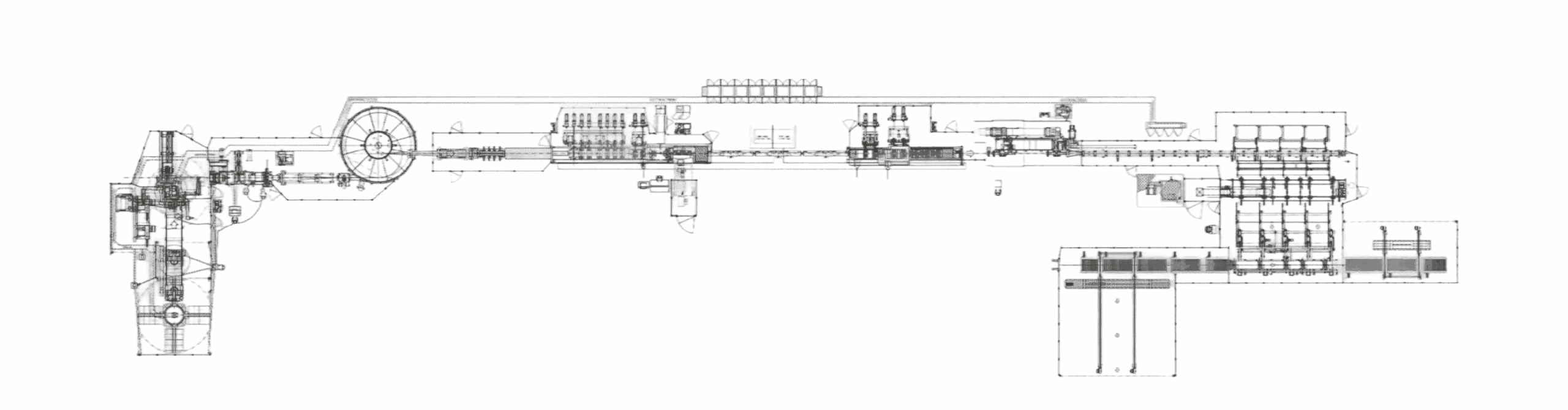

Explore our tube mill production line one section at a time
From coil handling to cut-off, take a closer look at the equipment that drives precision and performance.
Coil Handling

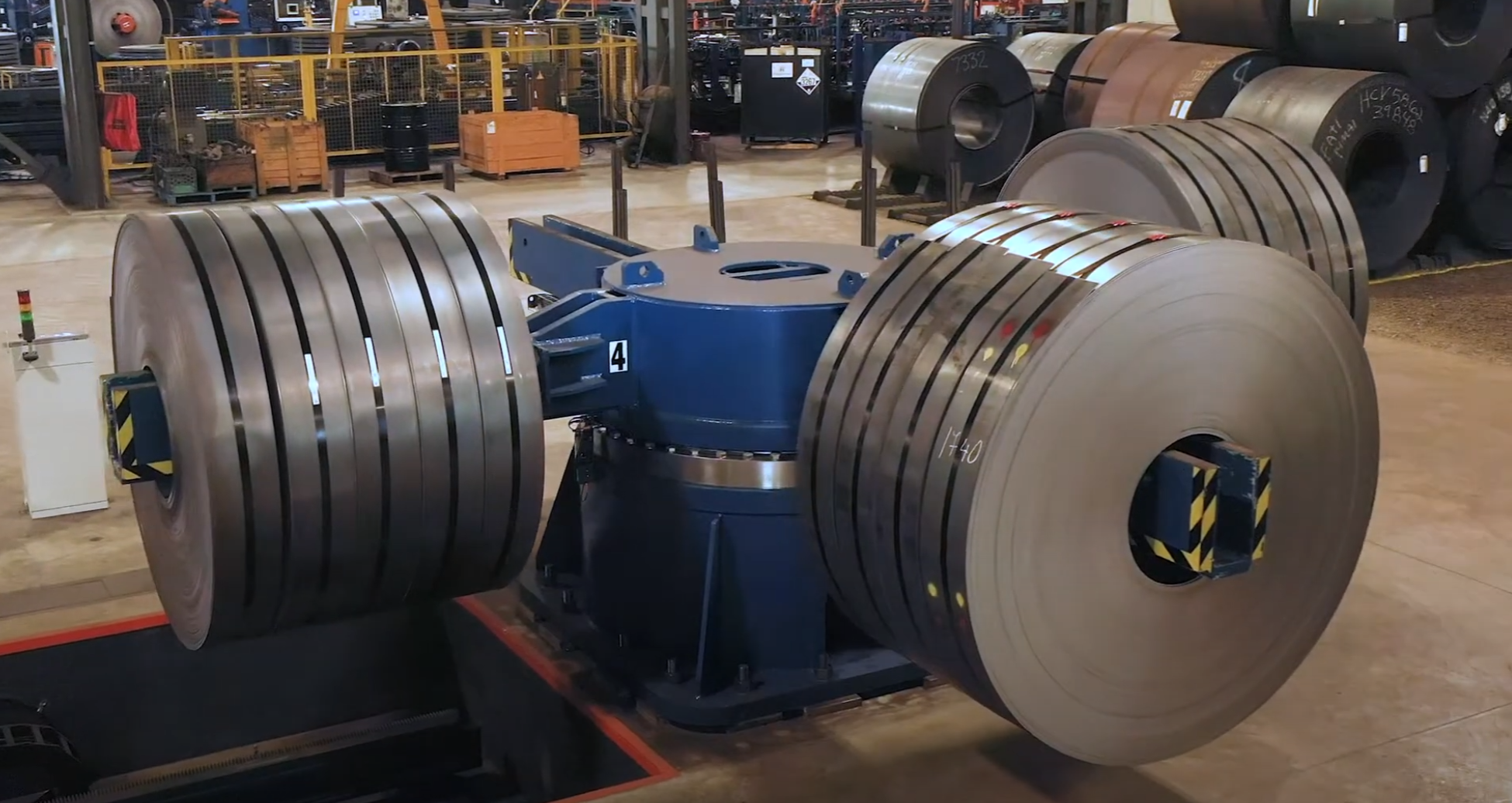

Coil Turnstile
Coil Loading Car
Aerial Coil Loader
Tilt Loading Car
Strip Entry Line

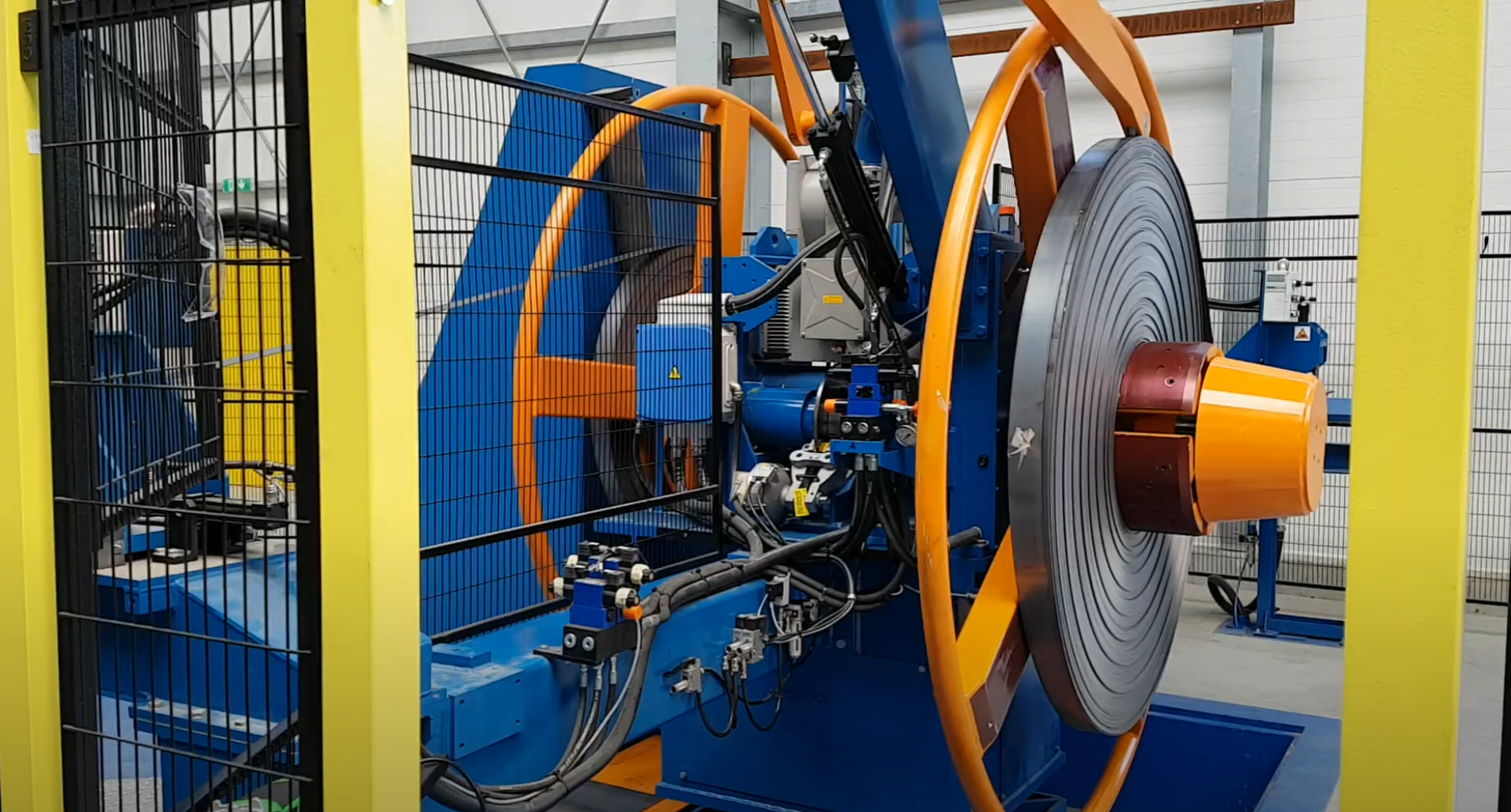

Peeler- Decoiler
Strip Flattener
Strip Joiner
Milling Device
Strip Edge Conditioning
Horizontal Accumulator
Vertical Accumulator
Tube Mill Technology
Forming Section

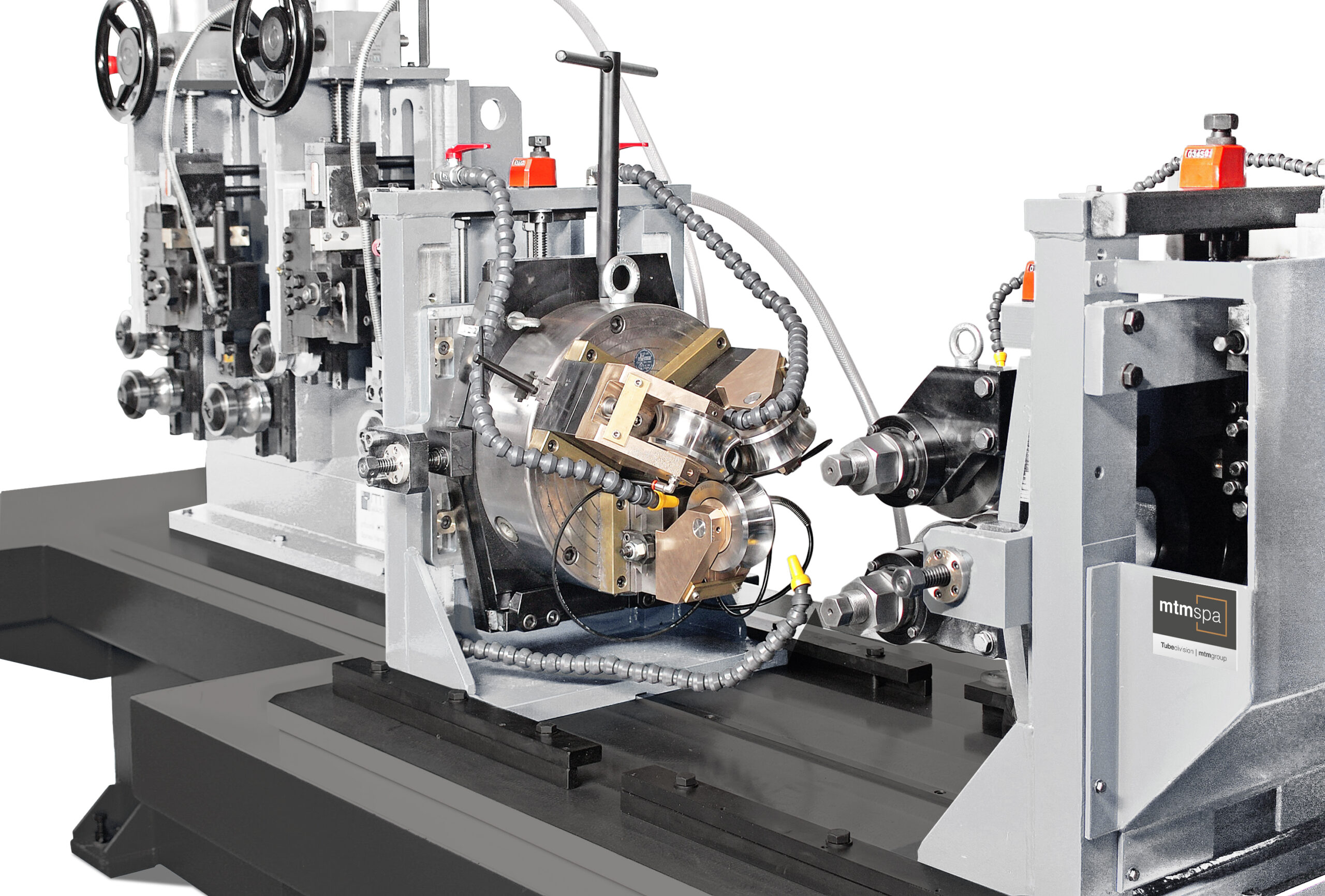

Welding Section
Outside Scarfing Devices
Chip Shreader (without conveyor)

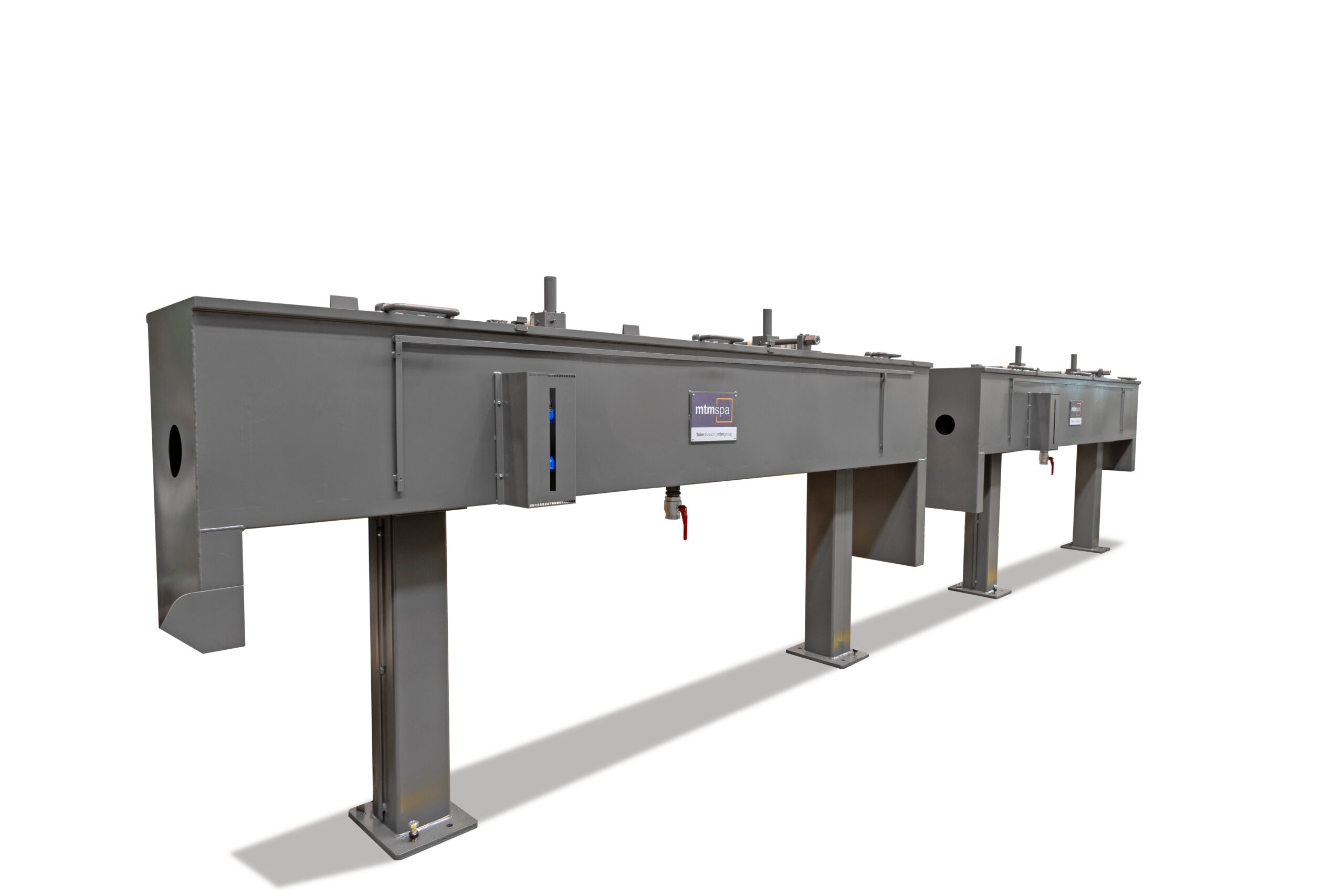

Cooling Section
Detwister
Sizing Section
Turk Heads Section
Quick Change System
Cut-Off Machines
Flying Cold Saw Cut-Off
Flying Friction Saw Cut-Off
Orbital/Single/Alternative Cut-Off
M&K
Single Knife Shear Flying
TC500 for Aluminum Profile
Discharge Systems

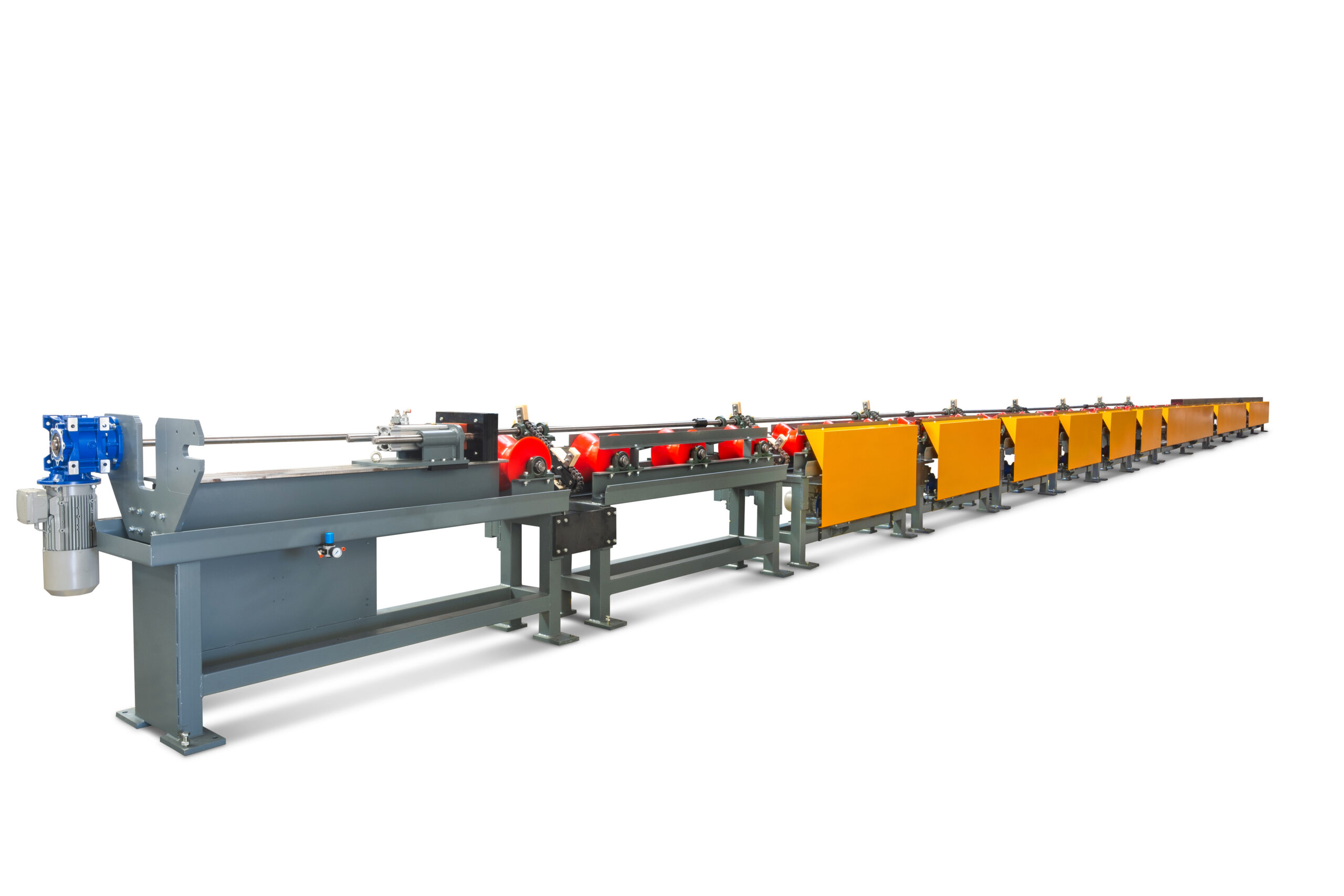

Runout Conveyor
Frontal Packing Machine
Lateral Packing Machine
The MTM Difference
Italian engineering
Every equipment carries forward the legacy of Italian engineering, known for precision, innovation and high quality.
Tailored for your industry
Custom-built to solve sector-specific challenges across automotive, construction, energy and more industries.
Regulatory compliance
Certified for CE, UL, CSA, EAC, NOM and built to meet EN/ASTM standards, so you can stay compliant globally and regionally.
Fully custom solutions
Each tube mill production line is tailored to your material, specs, and production goals and is designed to evolve as you scale.
Ongoing support
Dedicated service team for installation, training, spare parts, emergency and after-sales support.
Proven expertise
Trusted by manufacturers in 40+ countries, MTM has a global reputation for excellence built on long-term partnerships.
The MTM performance and support promise
MTM tube mill lines are built to meet the highest international standards and every equipment is backed by a 24-month warranty. Our machines undergo rigorous testing at each stage and are guaranteed to perform reliably.
If you ever need assistance, our engineering team responds within 24 hours and provides dedicated after-sales support.
FAQs for Tube Mill Lines
Yes. Our engineering team will evaluate your current setup and provide solutions that integrate seamlessly with your existing plan.
Yes. Our dedicated support team is committed to assisting you at every stage from initial consultation to continuous operational support. Our engineering and service teams are available for technical guidance, project planning, spare parts, and maintenance.
Our systems can produce ERW tubes in carbon steel, stainless steel and aluminium across various diameters, thicknesses, and profiles.
All MTM systems come with a 24-month warranty and our Performance & Support Promise, which includes guaranteed performance, technical support, and 24-hour response time from our service team.
Request a Technical Evaluation of Your Tube Mill Line
Planning a new line or improving an existing one? MTM engineers will assess your setup, identify improvement areas, and recommend solutions tailored to your production goals. Discover what’s possible with expert insight and proven performance.
